Cooling System Location Index

WARNING: This page is about a different variant/trim than selected.

Courtesy of MAZDA MOTORS CORP.

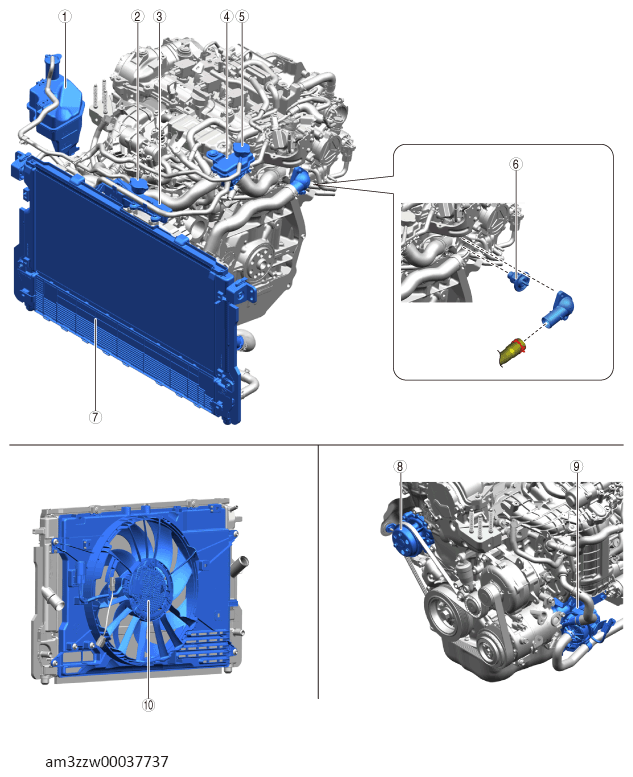

PART DESCRIPTION

1	Coolant reserve tank (See ENGINE COOLANT LEVEL INSPECTION .) (See COOLANT RESERVE TANK REMOVAL/INSTALLATION .)
2	Cooling system cap (See COOLING SYSTEM CAP INSPECTION .)
3	Water-cooled charge air cooler reserve tank (See WATER-COOLED CHARGE AIR COOLER RESERVE TANK REMOVAL/INSTALLATION .) (See WATER-COOLED CHARGE AIR COOLER COOLANT LEVEL INSPECTION .)
4	Air separate tank (See AIR SEPARATE TANK REMOVAL/INSTALLATION .)
5	Water-cooled charge air cooler reserve tank cap (See WATER-COOLED CHARGE AIR COOLER RESERVE TANK CAP INSPECTION .)
6	Thermostat (See THERMOSTAT REMOVAL/INSTALLATION .) (See THERMOSTAT INSPECTION .)
7	Radiator (See ENGINE COOLANT PROTECTION INSPECTION .) (See ENGINE COOLANT REPLACEMENT .) (See WATER-COOLED CHARGE AIR COOLER COOLANT REPLACEMENT .) (See ENGINE COOLANT LEAKAGE INSPECTION .) (See WATER-COOLED CHARGE AIR COOLER COOLANT LEAKAGE INSPECTION .) (See RADIATOR REMOVAL/INSTALLATION .)
8	Water pump (See WATER PUMP REMOVAL/INSTALLATION .)
9	Electric water pump (See ELECTRIC WATER PUMP REMOVAL/INSTALLATION .) (See ELECTRIC WATER PUMP INSPECTION .)
10	Cooling fan component (See COOLING FAN MOTOR REMOVAL/INSTALLATION .) (See COOLING FAN MOTOR INSPECTION .)
