Diode Check & Solenoid Test

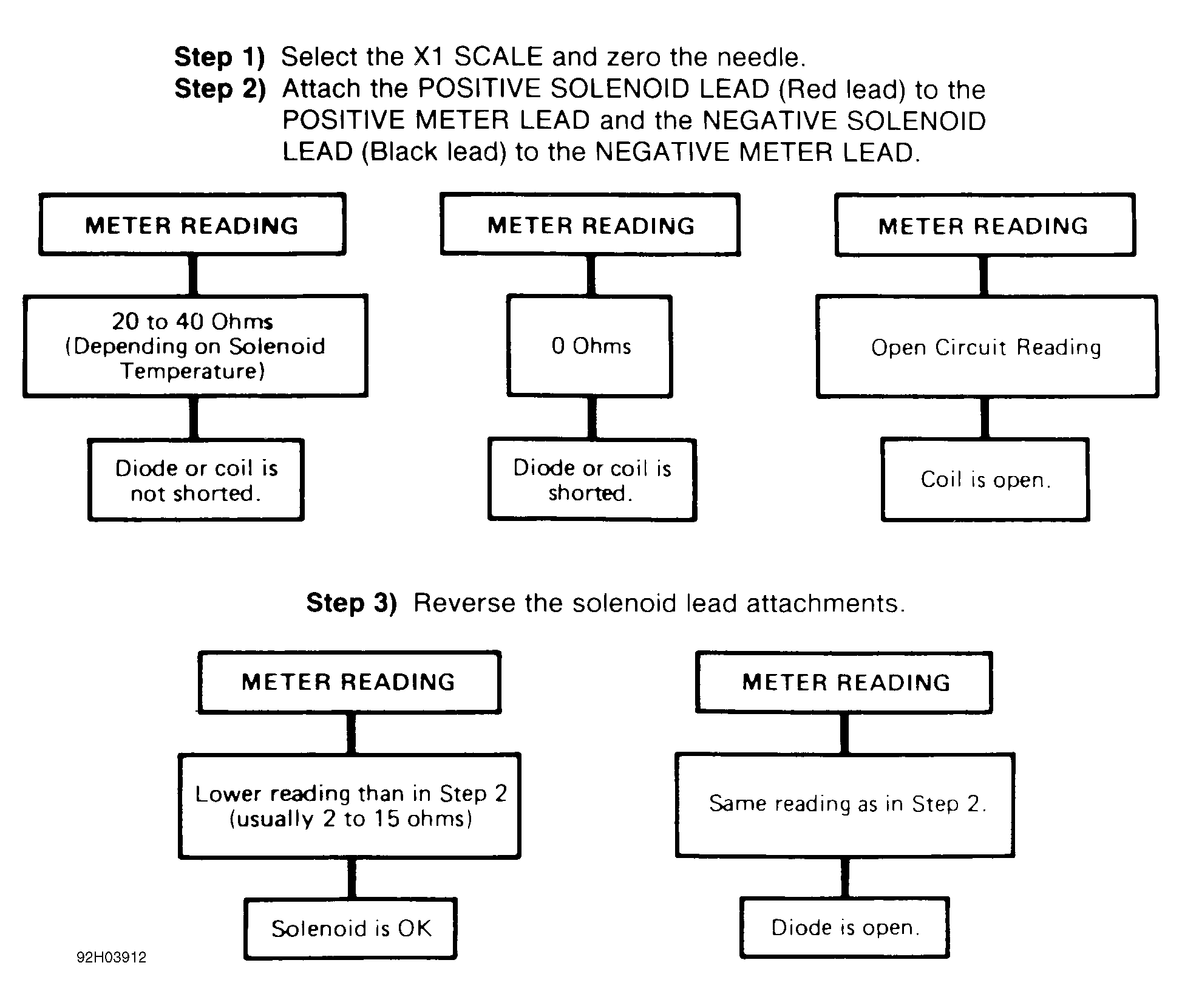

Fig 1: Diode Check & Solenoid Test
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
