Electrical System (Us)]: Fuse: Other

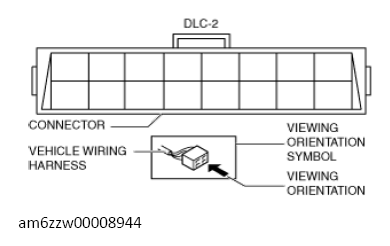

• When it is necessary to show the terminal side of the vehicle wiring harness-side connectors, such as the following connectors, the viewing orientation is from the terminal side.

• Main fuse block and the main fuse block relays
• Data link connector
• Check connector
• Relay box

Courtesy of MAZDA MOTORS CORP.
