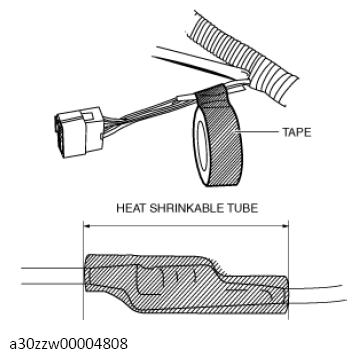

Taping work

Tape the surface of the heat-shrinkable tubing.

G13487643

Courtesy of MAZDA MOTORS CORP.

CAUTION:

Remove moisture, oil, and dust from the area to be taped before doing the taping.
Firmly tape the ends so that they do not peel off.
Always overlap the tape when wrapping.
Wrap the tape until it completely covers the heat-shrinkable tubing.
