MAZDA Connect Screen May Not Start (16-004/22)

Publication date: 2023-05-23
Reference number: 16-004/22
Supersedes refnos: 16-003/23

MAZDA CONNECT SCREEN MAY NOT START

MAZDA CONNECT SCREEN MAY NOT START

TECHNICAL SERVICE BULLETIN

Reference Number(s): 16-003/23, Date of Issue:  May 23, 2023
MAZDA: 2021-2022 CX-5, CX-9; 2019-2022 Mazda3; 2020-2022 CX-30; 2022 MX-30
Superceded Bulletin(s): 16-003/23, Date of Issue:  03/17/23, 16-004/22, Date of Issue:  11/04/2022 and 08/11/22

BULLETIN NOTES

This bulletin supersedes the previously issued bulletin(s) listed below. The changes are below.

PREVIOUSLY ISSUED BULLETIN LIST

Previous TSBs: Date(s) Issued:
16-003/23 03/17/23
16-004/22 11/04/2022 and 08/11/22

APPLICABLE MODEL(S)/VINS

2021-2022 CX-5 with VINS produced between JM3KF******448709 to 500771 (produced between July 1, 2021 - December 1, 2021)

2021-2022 CX-9 with VINS produced between JM3TC******534676 to 603948 (produced between July 1, 2021 - December 1, 2021)

2019-2022 Mazda3 (Japan Built) with VINS lower than JM1BP******506394 (produced before December 1, 2021)

2019-2022 Mazda3 (Mexico Built) with VINS lower than 3MZBP******254954 (produced before December 1, 2021)

2020-2022 CX-30 with VINS lower than 3MVDM******319149 (produced before December 1, 2021)

2022 MX-30 with VINS lowet than JM1DR**B***100606 (produced before December 1, 2021)

DESCRIPTION

Some customers may complain that Mazda Connect does not start (blank screen) or that it takes a long time to restart/reboot after starting the vehicle. This is caused by the initialization process with the CMU failing at startup due to a defective circuit board element. To eliminate this concern, the internal hardware (DRAM) of the CMU has been improved.

Customers having this concern should have their vehicle repaired using the following repair procedure.

REPAIR PROCEDURE

  1. Verify the customer concern
  2. Check the CMU Part No. and Serial No. of the CMU. If applicable, replace the CMU according to the procedure in MGSS.
    NOTE: Refer to instructions below on how to indicate the Part No. and Serial No.  of the CMU.
    • CX-5 (CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION)
    • CX-9 (CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION)
    • Mazda 3 (CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION)
    • CX-30 (CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION)
    • MX-30 (CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION [(US)])

    CMU Serial No and Part No. Retrieval

    1. Press and hold the Volume knob, then press and hold the Entertainment and Favorites buttons at the same time for 3-5 seconds and the Factory/Service Inspection screen will appear. CX-5 and CX-9  Mazda3, CX-30, MX-30
    G15752676
    G15752677

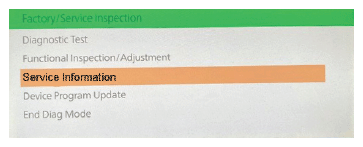

    2. Select "Service Information"
    G15752678

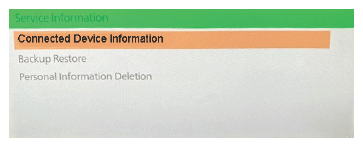

    3. Select "Connected Device Information"
    G15752679

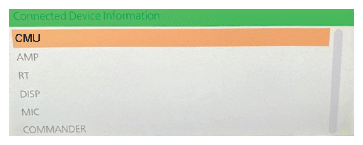

    4. Select "CMU"
    G15752680

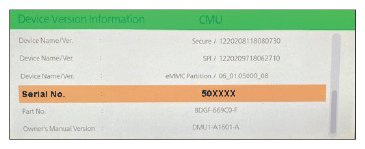

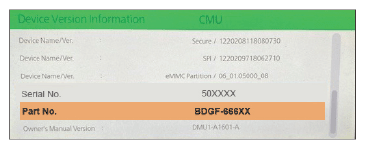

    5. Scroll down to "Serial No and CMU Part No" and document on Repair Order.
    G15752681G15752682
    G15752681G15752682

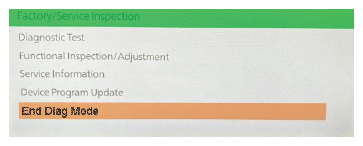

    6. Return to Factory/Service Inspection main screen and select End Diag Mode
    G15752683
    CMU Part No. and Serial No. can also be found on the original part label
    G15752684
  3. Verify the repair.

PARTS INFORMATION

NOTE: The Part No. has not been changed for the further modification. Only Serial #'s in the range listed on the chart are affected.
PARTS INFORMATION

Year Model CMU Part Number Serial No. Qty. Notes
From To
2019-2020 Mazda3 (Japan Build) BDGF-66-9C0* 622110 624748 1 Refer to United Radio website  to place a part order.
2020 Mazda3 (Japan Build) BFWM-66-9C0* 512261 512520 1
2021-2022 Mazda3 (Japan Build) BGMC-66-9C0* 500070 505859 1
2020 Mazda3 (Mexico Build) BGCE-66-9C0* 111827 113170 1
CX-30
2020 Mazda3 (Mexico Build) DGH9-66-9C0* 216848 227361 1
2020-2021 CX-30
2021-2022 Mazda3 (Mexico Build) BGMR-66-9C0* 104005 121788 1
CX-30
2022 MX-30 DN4E-66-9C0* 500125 500664 1
2021-2022 CX-5 TC3P-66-9C0* 687234 754800 1
CX-9

WARRANTY INFORMATION

NOTE:
  • This warranty information applies only to verified customer complaints on vehicles eligible for warranty repair.
  • This repair will be covered under Mazda's New Vehicle Limited Warranty term.
  • Additional diagnostic time cannot be claimed for this repair.
WARRANTY INFORMATION

Warranty Type A
Symptom Code 61
Damage Code 9W
Part Number Main Cause CMU Part No. used above
Quantity 0
Operation Number/Labor Hours: XXW47XRX/0.5 Hrs. (CX-5, CX-9)
XXW47ARX/0.3 Hrs. (Mazda3, CX-30)
XXW47XRX/0.9 Hrs. (MX-30)
