Coil Spring Installation Note

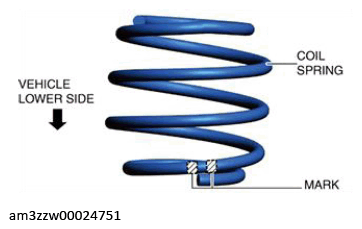

Install the front coil spring to the SST (49 T034 1A0) with the mark facing the vehicle lower side.

Courtesy of MAZDA MOTORS CORP.
Compress the coil spring using the SST (49 T034 1A0).

Courtesy of MAZDA MOTORS CORP.
Align the bottom edge of the coil spring with the stepped part of the lower spring seat, and install the shock absorber.
