Mounting Rubber Installation Note

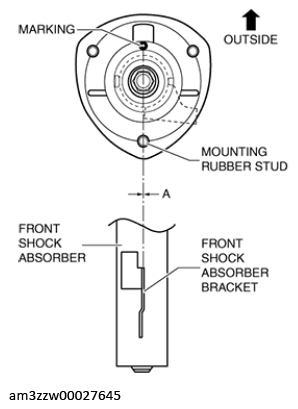

  1. Install the mounting rubber so that the mounting rubber stud and the front shock absorber bracket are in position A shown in the figure.
G13175658Courtesy of MAZDA MOTORS CORP.

A: 0°±5°

NOTE:
  • Assemble the mounting rubber so that the marking faces the outside of the vehicle.
