Front Shock Absorber And Coil Spring Removal/Installation: Installation

Secure the steering knuckle in a vise.

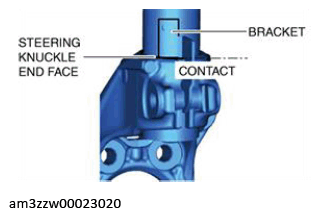

Insert the front shock absorber and coil spring into the steering knuckle so that the front shock absorber bracket is contacted with the end face of the steering knuckle.

Courtesy of MAZDA MOTORS CORP.
Remove the SST.
Install a new bolt and nut in the direction shown below and tighten them to the specified torque.

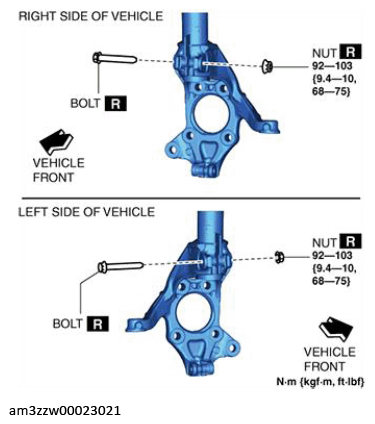

Fig 1: Steering Knuckle, Nut And Bolt With Torque Specification
Courtesy of MAZDA MOTORS CORP.
- Right side of vehicle: Insert bolt from front of vehicle
- Left side of vehicle: Insert bolt from rear of vehicle
Install the front shock absorber and steering knuckle component. (See WHEEL HUB, STEERING KNUCKLE REMOVAL/INSTALLATION (US) .)
If the front shock absorber and coil spring is replaced, inspect the wheel alignment and if necessary make adjustments. (See FRONT WHEEL ALIGNMENT (US) .)
