Down Switch: Notes

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Remove the screw.

Courtesy of MAZDA MOTORS CORP.

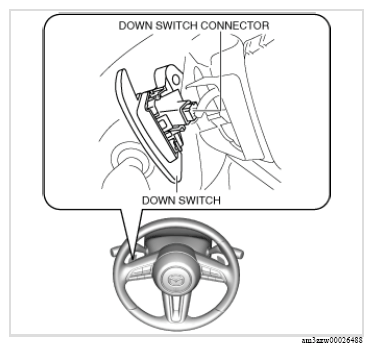

Disconnect the down switch connector.

Courtesy of MAZDA MOTORS CORP.
Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
Verify that the continuity between down switch component terminals A and B.

Courtesy of MAZDA MOTORS CORP.
- If there is any malfunction, replace the down switch.
