Fuel Tank Removal/Installation: AWD
WARNING: This page is about a different variant/trim than selected.

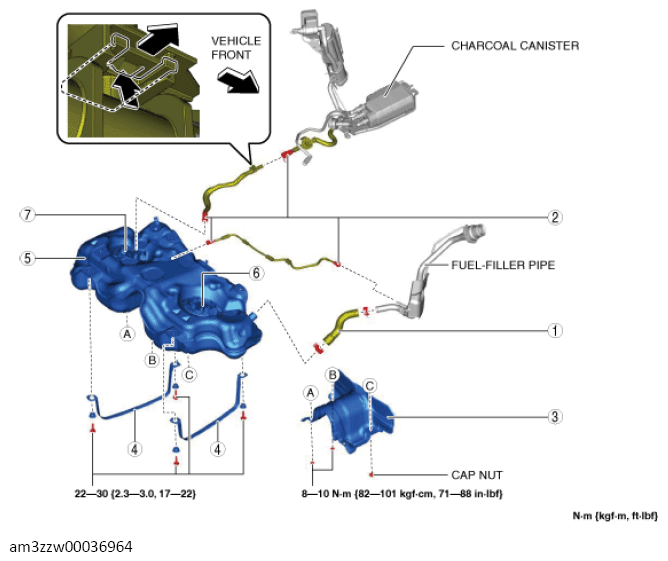

PART DESCRIPTION
| 1 | Joint hose (See JOINT HOSE INSTALLATION NOTE .) |
| 2 | Quick release connector (See QUICK RELEASE CONNECTOR (FUEL SYSTEM) REMOVAL/INSTALLATION [(VIN M) (US)] .) |
| 3 | Fuel tank insulator |
| 4 | Fuel tank strap |
| 5 | Fuel tank (See FUEL TANK REMOVAL NOTE (AWD) .) |
| 6 | Fuel pump unit (See FUEL PUMP UNIT REMOVAL/INSTALLATION [(VIN M) (US)] .) |
| 7 | Fuel gauge sender unit (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [(US)] .) |
