Protector Installation Note

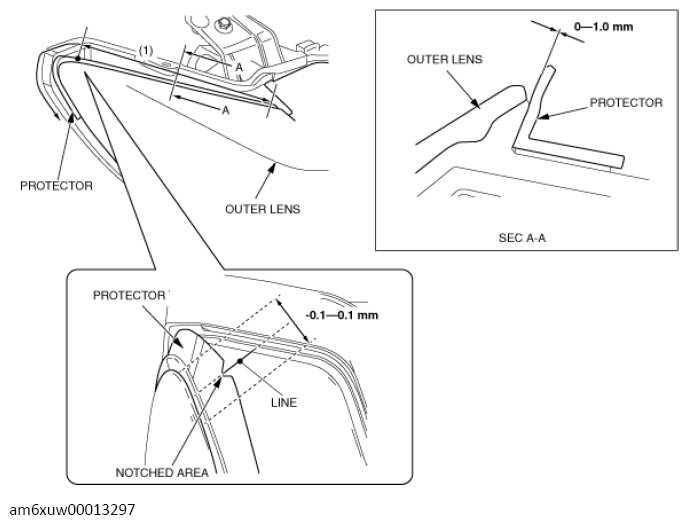

  1. Peel off the adhesive tape backing of the protector in range (1) shown in the figure.
    G13725308Courtesy of MAZDA MOTORS CORP.
  2. Align the notched area of the protector with the outer lens line as shown in the figure.
  3. Adhere the protector along the outer lens surface.
  4. Peel off all of the adhesive tape backing of the protector.
  5. Adhere the protector along the outer lens surface.
