LED Illumination Inspection
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the lower decoration panel. (See DECORATION PANEL REMOVAL/INSTALLATION .)
- Remove the push button start. (See PUSH BUTTON START REMOVAL/INSTALLATION .)

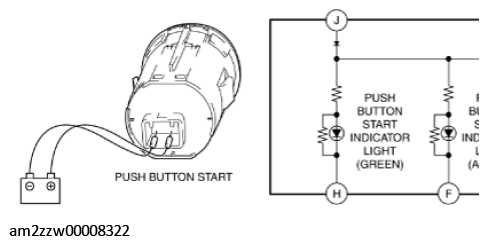

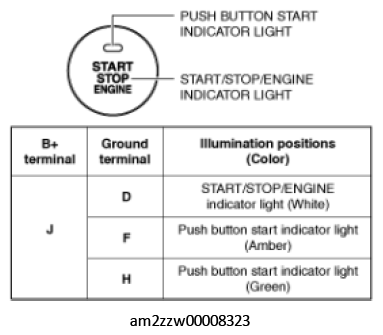

- Apply battery positive voltage and connect the ground to the push button start terminals and verify that the LED illuminates as indicated in the table.
- If the LED does not illuminate as indicated in the table, replace the push button start. (See PUSH BUTTON START REMOVAL/INSTALLATION .)
