Radiator Grille Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in the table.

    Step 1

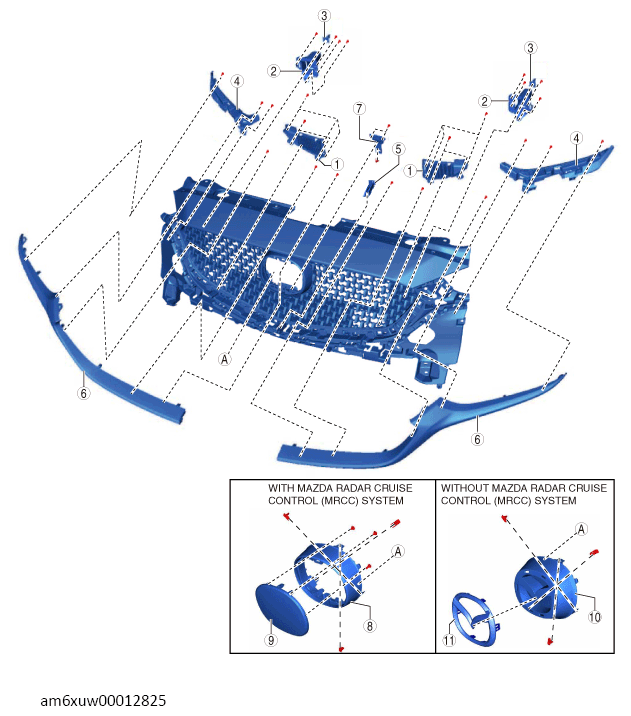

    G13725052Courtesy of MAZDA MOTORS CORP.
    PARTS DESCRIPTION

    1 Bracket A
    2 Bracket B
    3 Locator pin
    4 Bracket C
    5 Clip
    (See CLIP REMOVAL NOTE .)
    6 Lower grille molding
    7 Bracket D (without front camera)
    8 Mascot base (with Mazda radar cruise control (MRCC) system)
    9 Mascot (with Mazda radar cruise control (MRCC) system)
    10 Mascot base (without Mazda radar cruise control (MRCC) system)
    11 Mascot (without Mazda radar cruise control (MRCC) system)

    Step 2

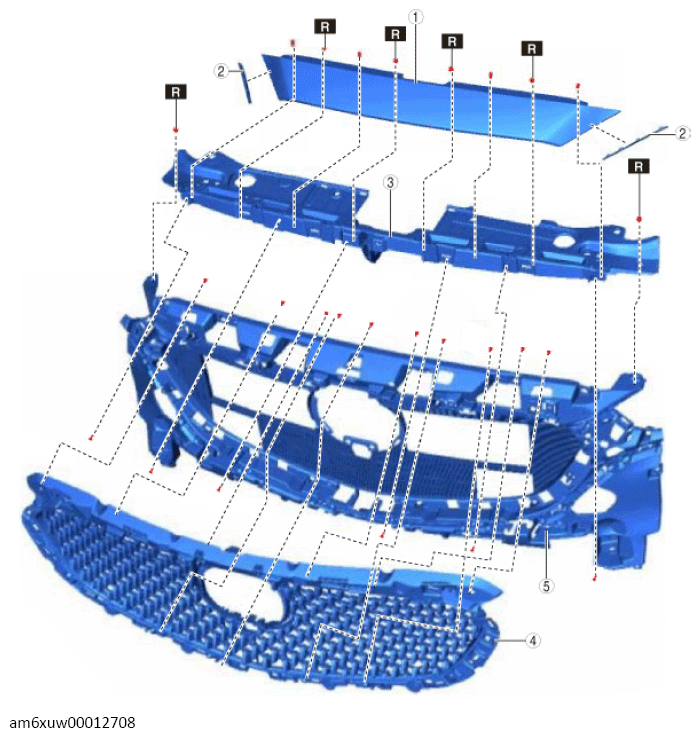

    G13725053Courtesy of MAZDA MOTORS CORP.
    PARTS DESCRIPTION

    1 Upper face
    (See RIVET REMOVAL NOTE )
    2 Bracket E
    3 Radiator grille bracket
    4 Grille mesh
    5 Radiator grille reinforcement
    (See RIVET REMOVAL NOTE )
  2. Assemble in the reverse order of disassembly.
