Trunk End Trim Removal/Installation

Remove the following parts:
1. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
2. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
3. Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION .)
Partially peel back the seaming welt.

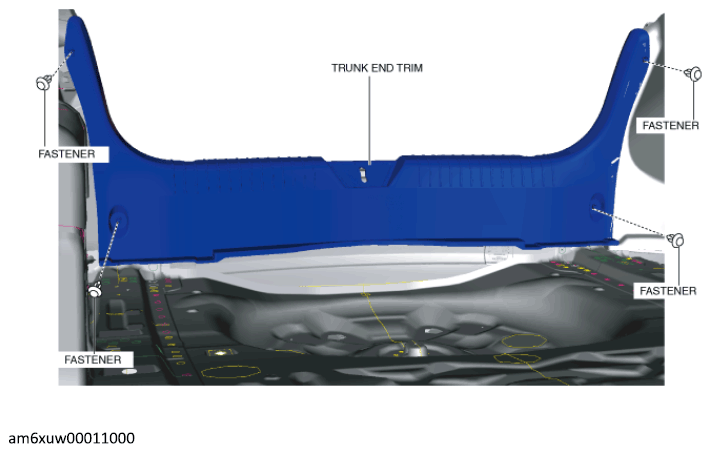

Remove the fasteners.

Courtesy of MAZDA MOTORS CORP.

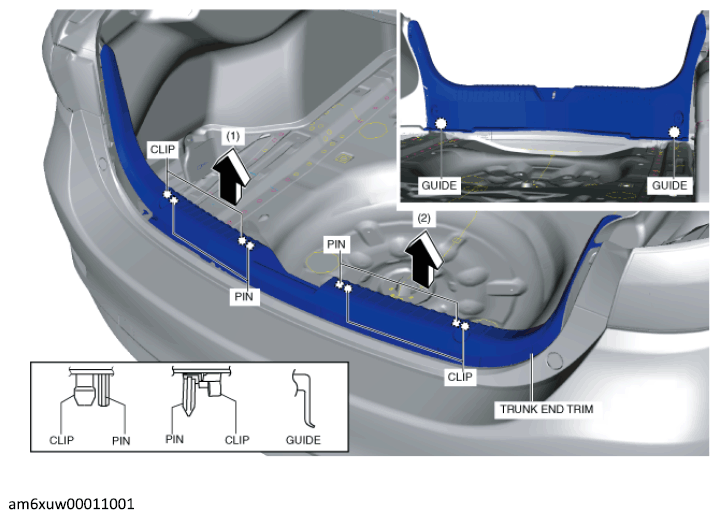

Pull the trunk end trim in the direction of the arrow in the order of (1), (2) shown in the figure while detaching clips, pins, and guides.

Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
