Upper Panel Disassembly/Assembly

  1. Disassemble in the order indicated in the table.

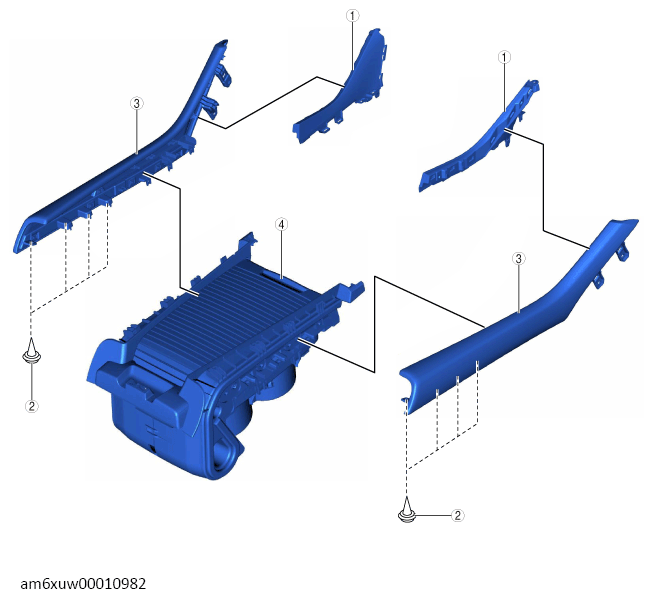

    G13725277Courtesy of MAZDA MOTORS CORP.
    PARTS DESCRIPTION

    1 Side cover
    2 Screw
    3 Console side panel No. 2
    4 Cup holder component
  2. Assemble in the reverse order of disassembly.
