Sunroof Unit Disassembly/Assembly: Notes

Disassemble in the order indicated in the table.

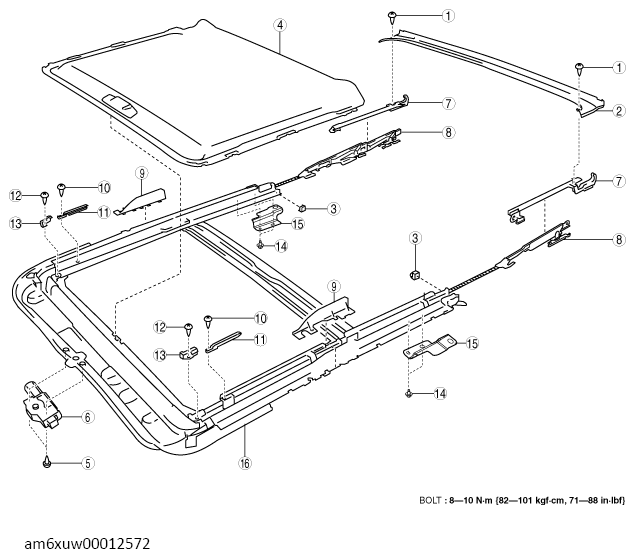

Fig 1: Exploded View Of Sunroof Unit Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

PARTS DESCRIPTION

1	Screw A
2	Drip rail
3	Rear stopper
4	Sunshade (See SUNSHADE DISASSEMBLY NOTE .)
5	Screw B
6	Sunroof motor
7	Front guide (See FRONT GUIDE DISASSEMBLY NOTE .)
8	Decoration link (See DECORATION LINK ASSEMBLY NOTE .)
9	Screen
10	Screw C
11	Set plate
