Front Door Glass Preparation

• Perform the adjusting the top of the front door glass to the position approx. 90 mm {3.5 in}away from the upper part of the front door trim.

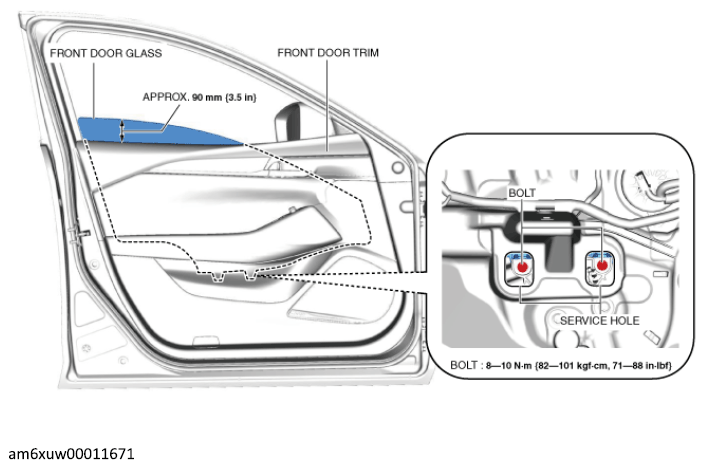

Fig 1: Front Door Glass Service Hole Bolts With Torque Specification

Courtesy of MAZDA MOTORS CORP.
