Auto-dimming Outer Mirror Inspection
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the Inner garnish.
- Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
- Disconnect the power outer mirror connector.

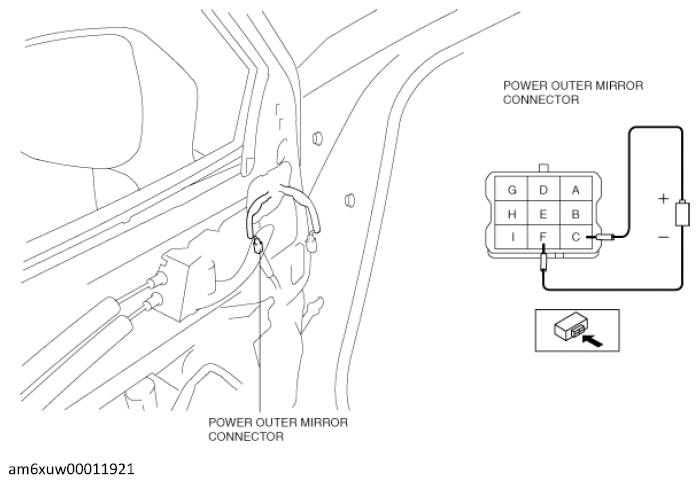

- Connect the power outer mirror connector terminal C to a dry cell battery's plus (+) terminal (1.2 V) and terminal F to its minus terminal.

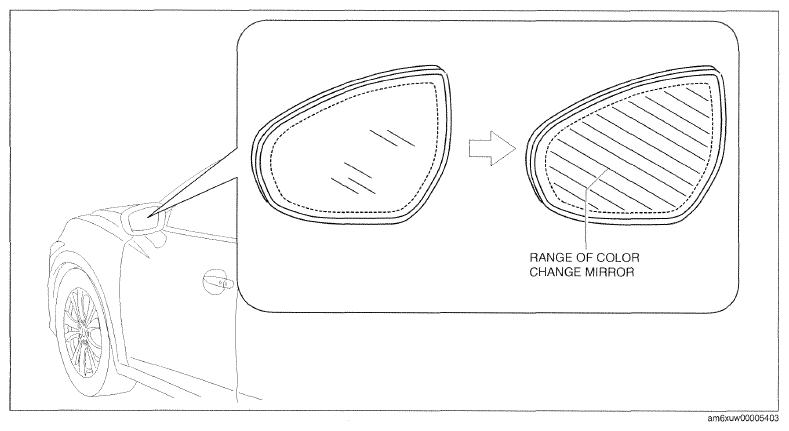

- Verify that the mirror side of the outer mirror glass changes color.
- If there is any malfunction, inspect the outer mirror glass. (See OUTER MIRROR GLASS INSPECTION .)
- If there is no malfunction in the outer mirror glass, replace the power outer mirror. (See POWER OUTER MIRROR REMOVAL/INSTALLATION .)
