Heated Outer Mirror Inspection

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
2. Remove the following parts:
   1. Inner garnish (2)Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
   2. Power outer mirror (See POWER OUTER MIRROR REMOVAL/INSTALLATION .)
   3. Outer mirror glass (See OUTER MIRROR GLASS REMOVAL .) (See OUTER MIRROR GLASS INSTALLATION .)

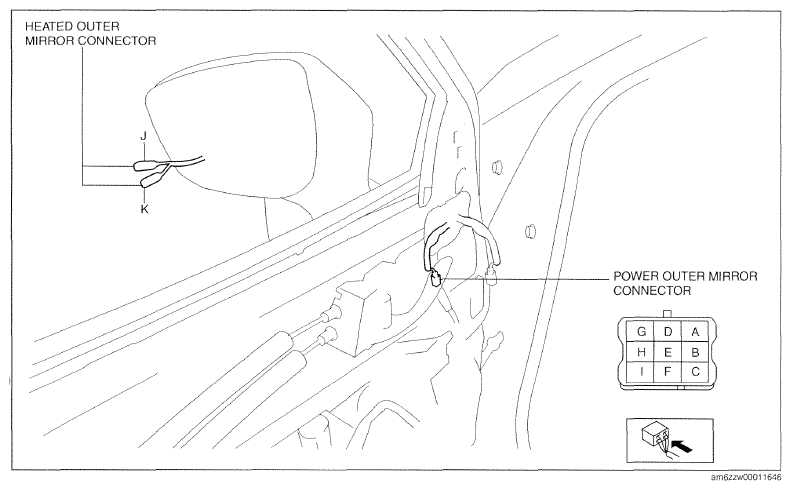

3. Verify that the continuity between heated outer mirror connector terminals is as indicated in the table.

Courtesy of MAZDA MOTORS CORP.

• If not as indicated in the table, replace the power outer mirror. (See POWER OUTER MIRROR REMOVAL/INSTALLATION .)

Courtesy of MAZDA MOTORS CORP.
