Sensor Cover Removal/Installation

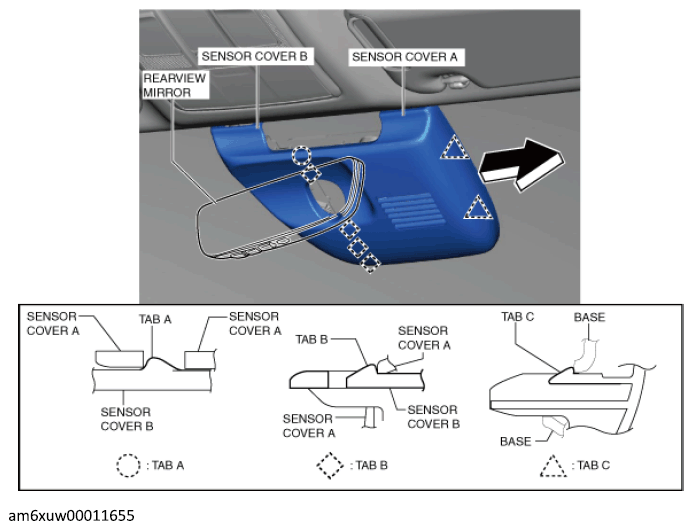

- Pull sensor cover A in the direction of the arrow shown in the figure, detach tabs A, B and C, and remove sensor cover A from the base.

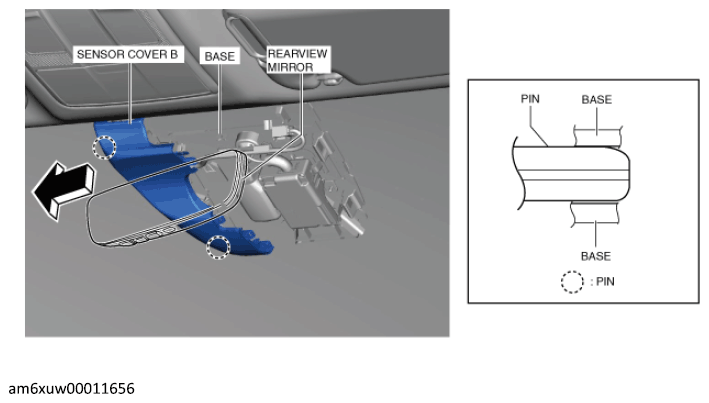

- Pull sensor cover B in the direction of the arrow shown in the figure, detach the pins and remove sensor cover B from the base.
- Install in the reverse order of removal.
