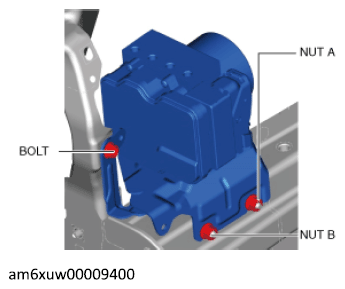

Bolt and Nuts Installation Note

Tighten bolt to the specified torque.

Courtesy of MAZDA MOTORS CORP.

Tightening torque

19-25 Nm {2.0-2.5 kgf-m, 15-18 ft.lbf}
Tighten nuts A to the specified torque.
Tightening torque

19-25 Nm {2.0-2.5 kgf.m, 15-18 ft.lbf}
Tighten nuts B to the specified torque.
Tightening torque

19-25 Nm {2.0-2.5 kgf.m, 15-18 ft.lbf}
