Brake Pipe Installation Note

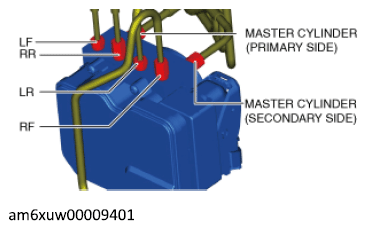

Align the marks made before removal and install the brake pipe to the DSC HU/CM and brake pipe joint referring to the figure.

Courtesy of MAZDA MOTORS CORP.
Tighten the brake pipe to the specified torque using the commercially available flare nut wrench.
