Resistance Inspection: Notes
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the following parts:
- Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
- Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
- Cluster switch (See CLUSTER SWITCH REMOVAL/INSTALLATION .)

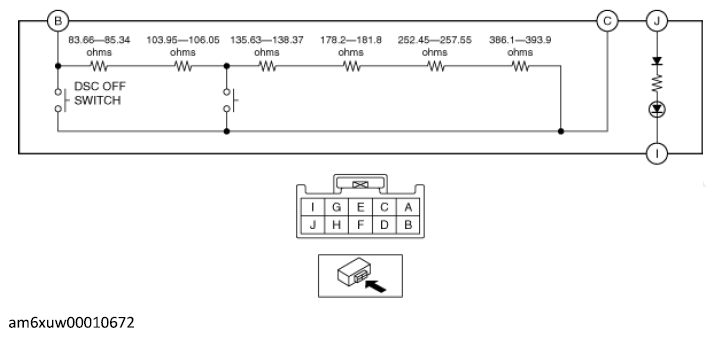

- Verify that the resistance between cluster switch terminals B and C is as indicated in the table.
