Parking Sensor System Operation Switching Procedure

NOTE:
  • The parking sensor system operation switching can only be performed on vehicles with the front parking sensor.
  • The parking sensor system can be switched between automatic and manual by performing this procedure.
  • For each operation condition, if the system is set to automatic/manual, refer to the [PARKING SENSOR SYSTEM] for technical guide

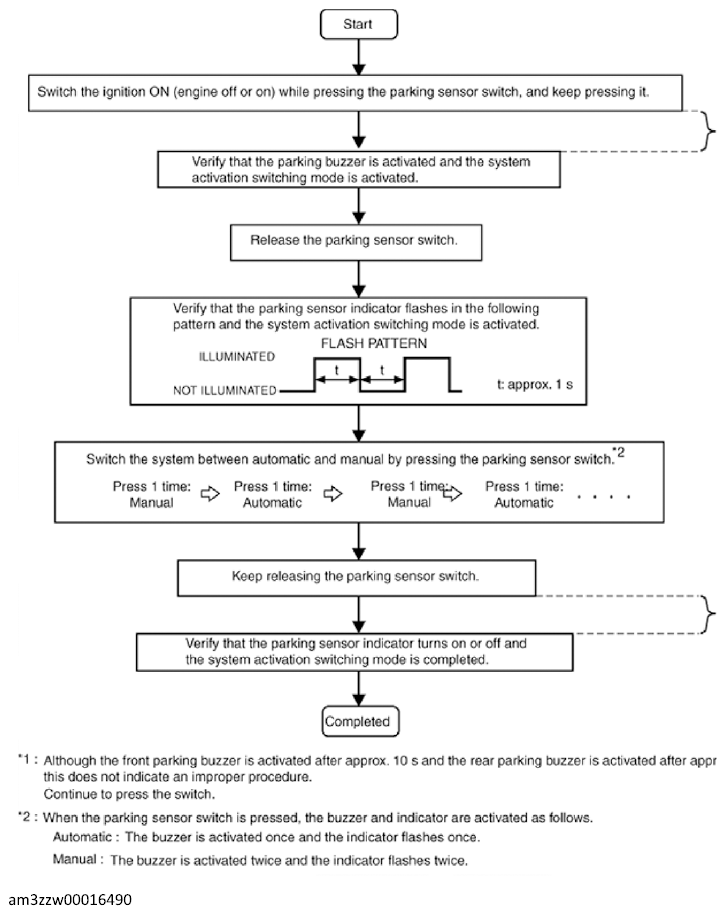

  1. Switch using the following procedure:
    G12237737Courtesy of MAZDA MOTORS CORP.
