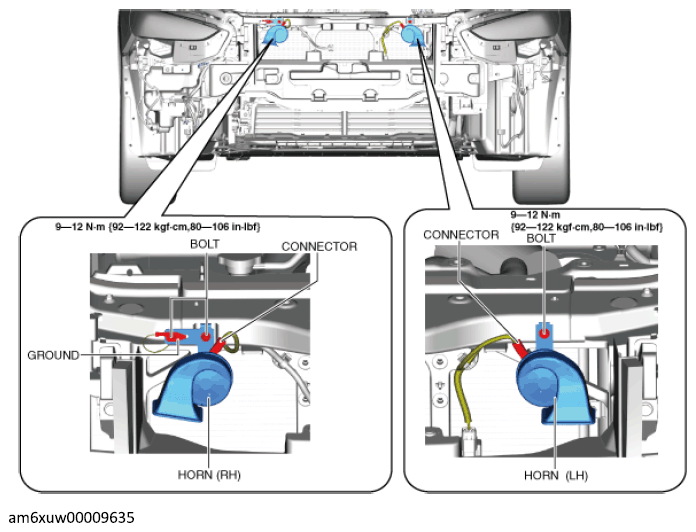

Horn Removal/Installation
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the set plate. (See SET PLATE REMOVAL/INSTALLATION .)
- Remove the fresh-air duct installation bolts. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (VIN Y)] .) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (VIN M)] .)
- Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
- Disconnect the connector.
- Remove the bolt.
- Remove the ground. (RH only)
- Remove the horn.
- Install in the reverse order of removal.
