WU-TWC Installation Note
- Temporarily tighten the WU-TWC installation nuts.

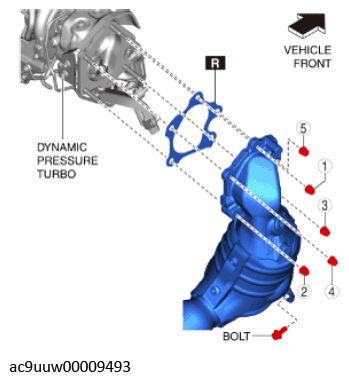

- Tighten the WU-TWC installation nuts in the order shown in the figure to the specified torque.
Tightening torque
45-62 N.m {4.6-6.3 kgf.m, 34-45 ft.lbf}
- Temporarily tighten the WU-TWC installation bolt.
- Tighten the WU-TWC installation bolt to the specified torque.
Tightening torque
38-51 N.m {3.9-5.2 kgf.m, 29-37 ft.lbf}
