Rear Differential Removal/Installation: Notes

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Performing the following procedures could cause an open circuit in the rear ABS wheel-speed sensor wiring harness if it is pulled by mistake. Before servicing, disconnect the rear ABS wheel-speed sensor and set it aside so that the wiring harness will not be pulled by mistake.
  • If the characteristic value of a new coupling component is not input to the AWD control module or the characteristic value is input incorrectly after replacing the coupling component, it could result in the following conditions:
    • The system does not operate normally.
    • A problem with durability of the coupling component occurs.
  • After replacing the coupling component, read out the characteristic value of a new coupling component and write it to the AWD control module. (See COUPLING COMPONENT CALIBRATION DATA WRITING .)
  • Read out the characteristic value of the coupling component from the label or mark shown in the figure.
Fig 1: Label Or Mark On Coupling Component
G09075120Courtesy of MAZDA MOTORS CORP.
NOTE:
  • The AWD control module stores the characteristic value of the coupling component before replacement.
  • If the characteristic value of a new coupling component is not written, the AWD control module does not store the value.
  1. Switch the ignition ON (engine off).
  2. Release the electric parking brake.
  3. Switch the ignition off.
  4. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  5. Remove the wheels and tires. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
  6. Drain the rear differential oil into a container. (See DIFFERENTIAL OIL REPLACEMENT .)
  7. Remove the following parts: (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
    1. Floor under cover No. 2
    2. Floor under cover No. 1
  8. Remove the fasteners and bolt in the order shown in the figure.

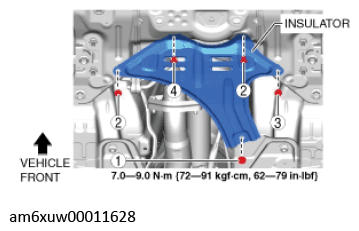

    Fig 2: Floor Under Cover Fasteners And Bolt Tightening Sequence
    G12234245Courtesy of MAZDA MOTORS CORP.
  9. Remove the insulator.
  10. Remove the following parts:
    1. Brace bar
    2. Tunnel member
  11. Disconnect the quick release connector from the urea injector. (See UREA INJECTOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
  12. Remove the clip.

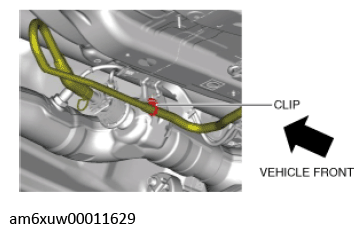

    Fig 3: Removing Clip
    G12234246Courtesy of MAZDA MOTORS CORP.
  13. Remove the bolts.

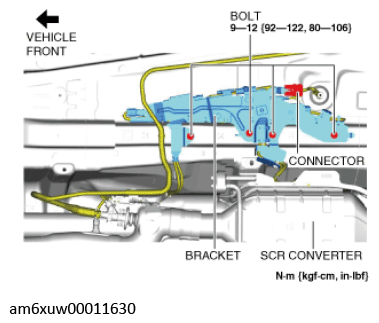

    Fig 4: Removing Bolts
    G12234247Courtesy of MAZDA MOTORS CORP.
  14. Disconnect the connector.
  15. Set the bracket aside.
  16. Remove the following parts as a single unit.
    • Bracket
    • SCR converter (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
  17. Remove the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION .)
  18. Remove the rear drive shaft. (See REAR DRIVE SHAFT REMOVAL/INSTALLATION .)
  19. Remove in the order indicated in the table.
  20. Install in the reverse order of removal.
  21. Add the specified rear differential oil. (See DIFFERENTIAL OIL REPLACEMENT .)

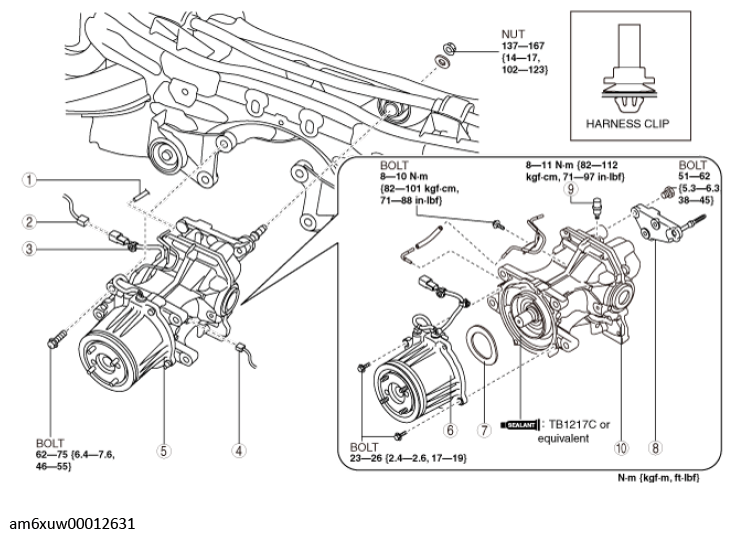

    Fig 5: Rear Differential Components With Torque Specification
    G12234248Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Hose
    2 Connector (AWD solenoid)
    3 Harness clip
    4 Connector (differential oil temperature sensor)
    5 Rear differential component
    (See Rear Differential Component Removal Note .)
    6 Coupling component
    7 Washer
    8 Rear differential mounting bracket
    (See Rear Differential Mounting Bracket Installation Note .)
    9 Breather
    10 Rear differential
