Radiator Grille Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order indicated in the table.

    Step 1

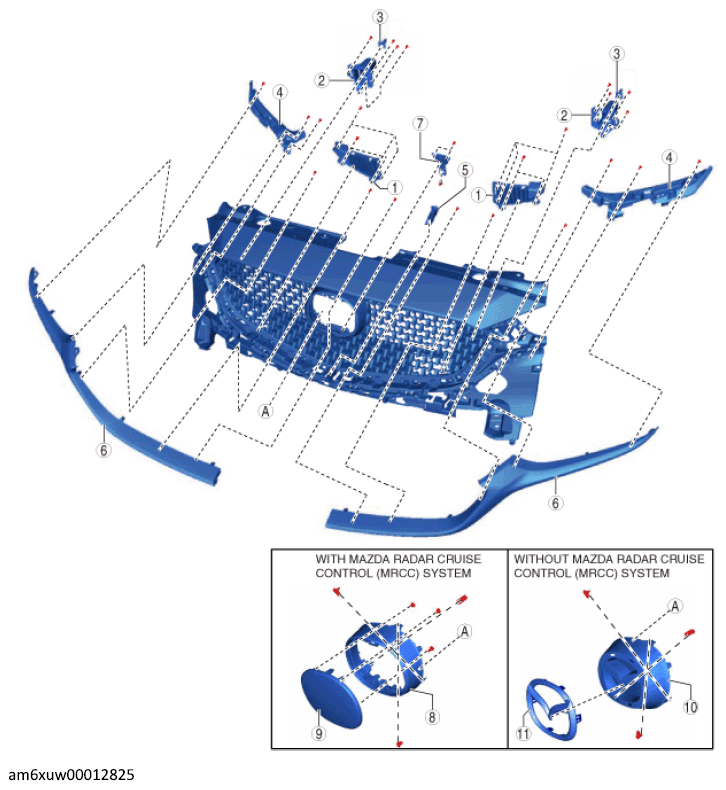

    Fig 1: Exploded View Of Radiator Grille - Step 1
    G12234835Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Bracket A
    2 Bracket B
    3 Locator pin
    4 Bracket C
    5 Clip
    (See Clip Removal Note .)
    6 Lower grille molding
    7 Bracket D (without front camera)
    8 Mascot base (with Mazda radar cruise control (MRCC) system)
    9 Mascot (with Mazda radar cruise control (MRCC) system)
    10 Mascot base (without Mazda radar cruise control (MRCC) system)
    11 Mascot (without Mazda radar cruise control (MRCC) system)

    Step 2

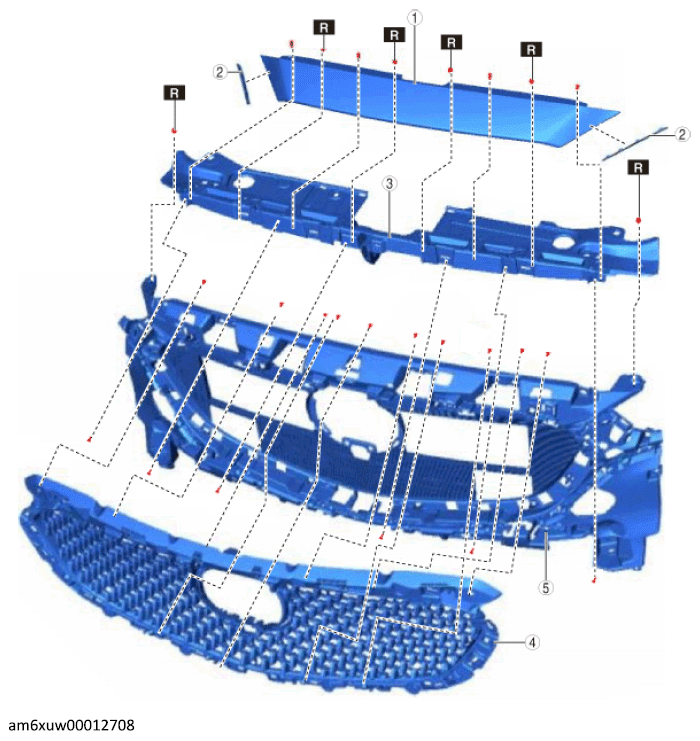

    Fig 2: Exploded View Of Radiator Grille - Step 2
    G12234836Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Upper face
    (See Rivet Removal Note )
    2 Bracket E
    3 Radiator grille bracket
    4 Grille mesh
    5 Radiator grille reinforcement
    (See Rivet Removal Note )
  2. Assemble in the reverse order of disassembly.
