Front Splash Shield

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front deflector. (See DEFLECTOR REMOVAL/INSTALLATION .)
  2. Remove the front mudguard. (See MUDGUARD REMOVAL/INSTALLATION .)
  3. Remove the fasteners.

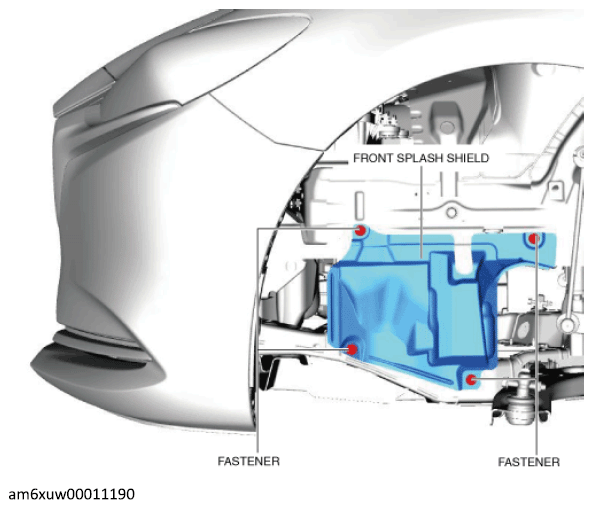

    Fig 1: Front Splash Shield And Fasteners
    G12234870Courtesy of MAZDA MOTORS CORP.
  4. Remove the front splash shield.
  5. Install in the reverse order of removal.
