Front Crossmember Component Removal Note

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Removing the crossmember is dangerous. The crossmember component could fall and cause serious injury or death. Verify that the jack securely supports the crossmember component.

Support the front crossmember component using a jack.

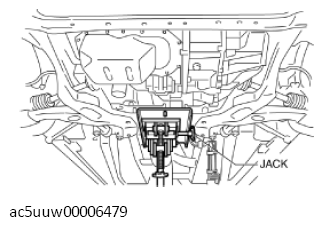

Fig 1: Supporting Front Cross Member Component Using Jack
Courtesy of MAZDA MOTORS CORP.
Remove the front crossmember installation bolts.
Remove the front crossmember, front stabilizer, front lower arm, and steering gear and linkage as a single unit.
