Insulator Installation Note

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Install the fasteners in the order shown in the figure below.

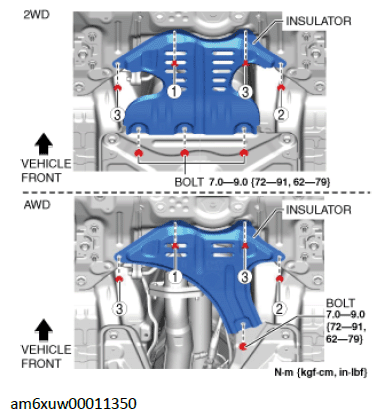

Fig 1: Insulator Fasteners Tightening Sequence
Courtesy of MAZDA MOTORS CORP.
Install the bolts.
