Front Shock Absorber And Coil Spring Removal/Installation: Notes

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Performing the following procedures could cause an open circuit in the front ABS wheel-speed sensor wiring harness if it is pulled by mistake. Before servicing, disconnect the front ABS wheel-speed sensor and set it aside so that the wiring harness will not be pulled by mistake.

Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
Disconnect the front ABS wheel-speed sensor wiring harness installed to the steering knuckle and set it aside.

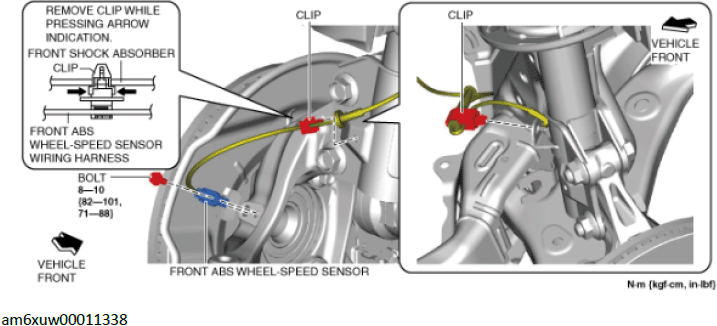

Fig 1: Disconnecting Front ABS Wheel-Speed Sensor Wiring Harness To Steering Knuckle
Courtesy of MAZDA MOTORS CORP.
Remove in the order indicated in the table.
Install in the reverse order of removal.

When replacing the front shock absorber and coil spring, inspect the wheel alignment and adjust it if necessary. (See FRONT WHEEL ALIGNMENT .)

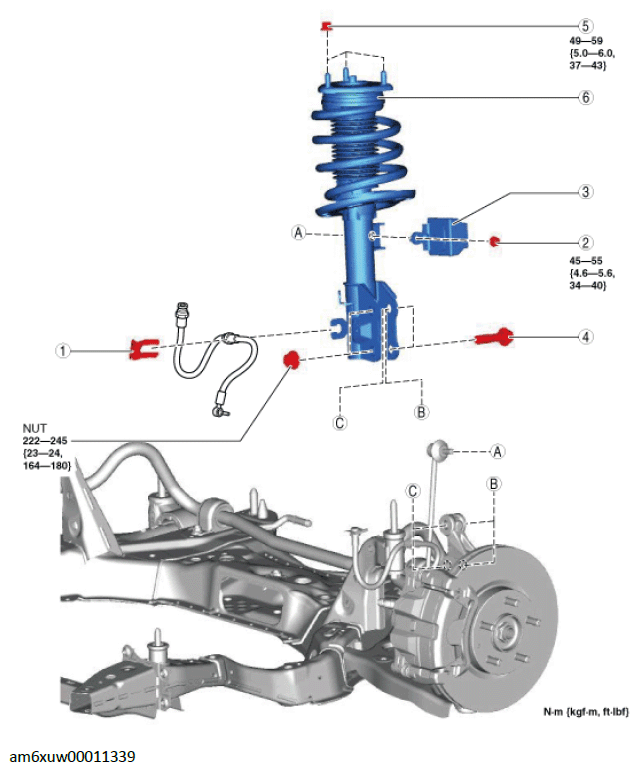

Fig 2: Replacing Front Shock Absorber And Coil Spring

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Front brake hose clip (See FRONT BRAKE HOSE REMOVAL/INSTALLATION .)
2	Front stabilizer control link upper nut (See FRONT STABILIZER REMOVAL ) (See FRONT STABILIZER INSTALLATION .)
3	Dynamic damper
4	Front shock absorber lower bolt (See Front Shock Absorber Lower Bolt Installation Note .)
5	Front shock absorber upper nut
6	Front shock absorber and coil spring (See Front Shock Absorber and Coil Spring Installation Note .)
