Audio Amplifier Removal/Installation

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Slide the seat rearward (RH).
Remove the bolt.

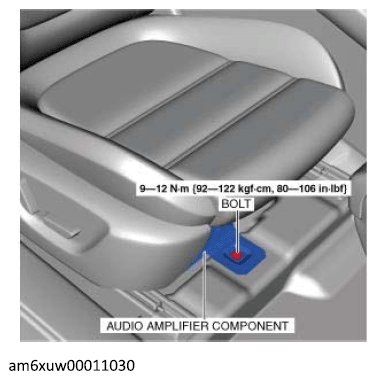

Fig 1: Audio Amplifier Component And Bolt With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Slide the seat forward (RH).
Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the bolt.

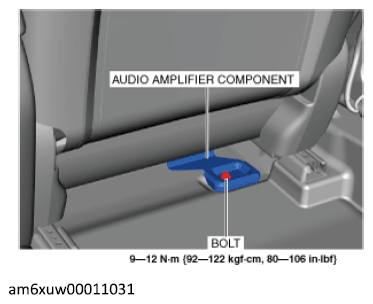

Fig 2: Audio Amplifier Component And Bolt With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Disconnect the connectors.

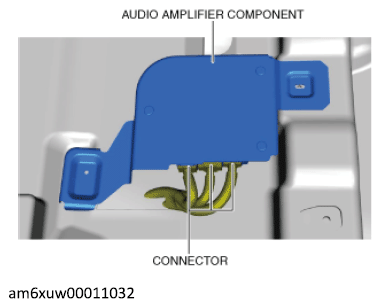

Fig 3: Audio Amplifier Component And Connector
Courtesy of MAZDA MOTORS CORP.
Remove the nuts.

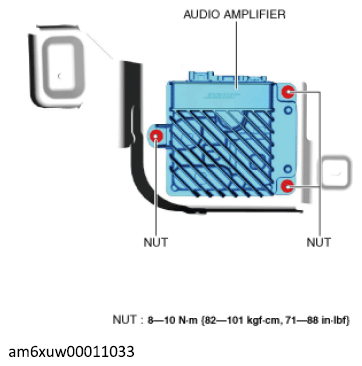

Fig 4: Audio Amplifier And Nuts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the audio amplifier.
Install in the reverse order of removal.
