Rear Mount Camera Removal/Installation
WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- The center display determines the presence/non-presence of a rear mount camera and records it based on the communication status when the ignition is switched ON (engine off or on) or to the ACC position for the first time after the negative battery terminal is connected.
- If the negative battery terminal is connected while the center display has recorded the non-presence of the rear mount camera and thereafter a rear mount camera is installed, the installed rear mount camera will not operate.
- When installing or removing the rear mount camera, always disconnect the negative battery terminal, and after the servicing is completed, switch the ignition to ACC or ON (engine off or on) to allow the center display to record the presence/non-presence of the rear mount camera.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the following parts:
- Trunk lid recess (See TRUNK LID RECESS REMOVAL/INSTALLATION .)
- Trunk lid trim (See TRUNK LID TRIM REMOVAL/INSTALLATION .)
- Trunk lid garnish (See TRUNK LID GARNISH REMOVAL/INSTALLATION .)

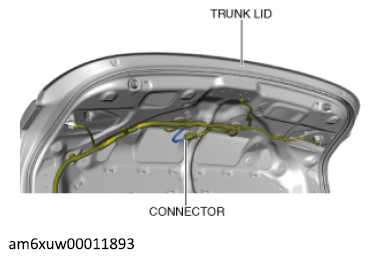

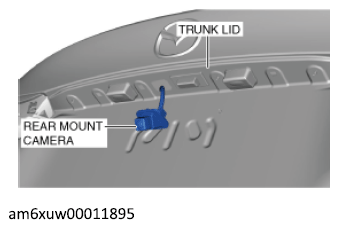

- Disconnect the connector.

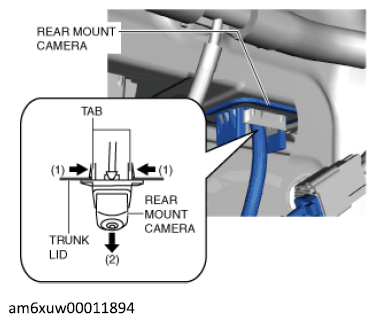

- Press the rear mount camera tabs in the direction of arrows (1) shown in the figure below, press the rear mount camera in the direction of arrow (2) shown in the figure below, and disengage the rear mount camera tabs from the trunk lid.
- Remove the rear mount camera.
- Install in the reverse order of removal.
- Perform the 360° view monitor system aiming. (with 360° view monitor system) (See 360DEGREES VIEW MONITOR SYSTEM AIMING .)
