Front Brake Caliper Installation Note
WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Clean the exposed area of the piston.

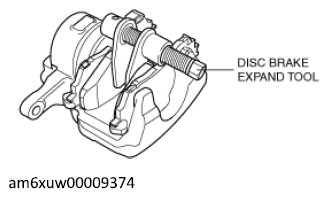

- Push the piston in using the commercially available disc brake expand tool.
Courtesy of MAZDA MOTORS CORP.
- Install the front brake caliper component.
