Front Console Box Removal/Installation

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
2. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] .)
3. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
Pull the front console box in the direction of the arrow and remove it while detaching clips and pin.

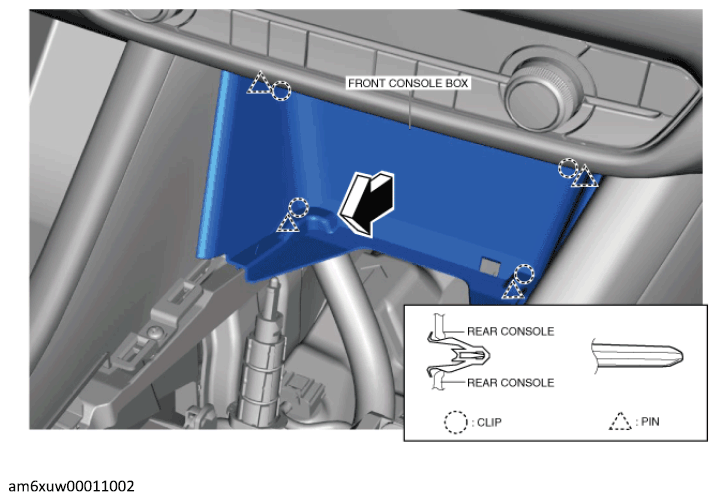

Fig 1: Pulling Front Console Box
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
