Front Door Trim Disassembly/Assembly: Driver-Side

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order shown in the figure below.

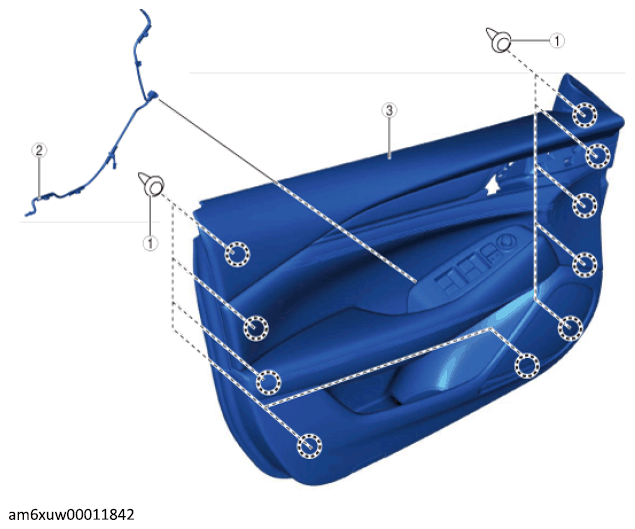

Fig 1: Front Door Trim Components (Driver-Side)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Fastener
2	Short cord
3	Front door trim

Assemble in the reverse order of disassembly.
NOTE:
- When replacing the front door trim, remove the following parts:
1. Power window main switch (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)
2. Door lock switch (See DOOR LOCK SWITCH REMOVAL/INSTALLATION .)
3. Power window main switch cover (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)
4. Courtesy light (See COURTESY LIGHT REMOVAL/INSTALLATION .)
5. Pocket light (with pocket light) (See POCKET LIGHT REMOVAL/INSTALLATION .)
