Lower Panel Removal/Installation: Passenger-Side: Installation

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Move the passenger-side lower panel in the order of arrows (1), (2), (3) and (4) shown in the figure below, and attach the clips, hook, tab, and guide to the dashboard.

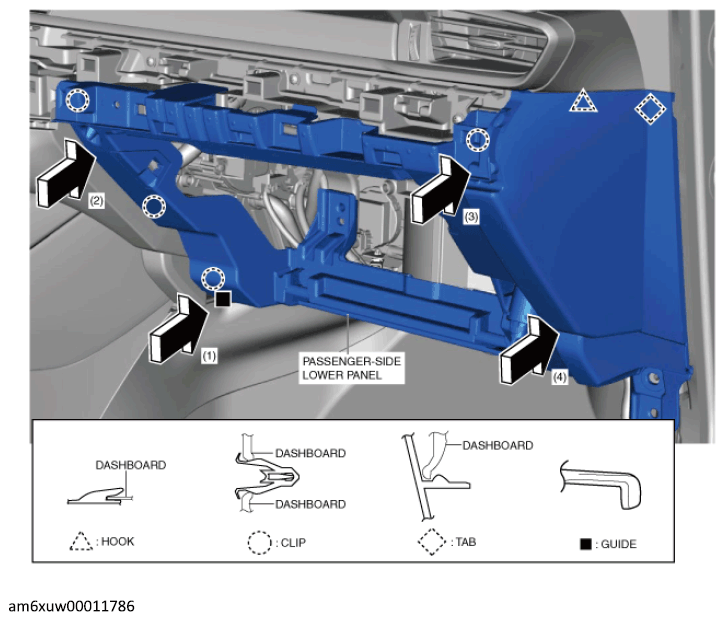

Fig 1: Attaching Clips, Hook, Tab And Guide To Dashboard
Courtesy of MAZDA MOTORS CORP.
Assemble the passenger-side lower panel to the dashboard and tighten the bolts and screws temporarily.

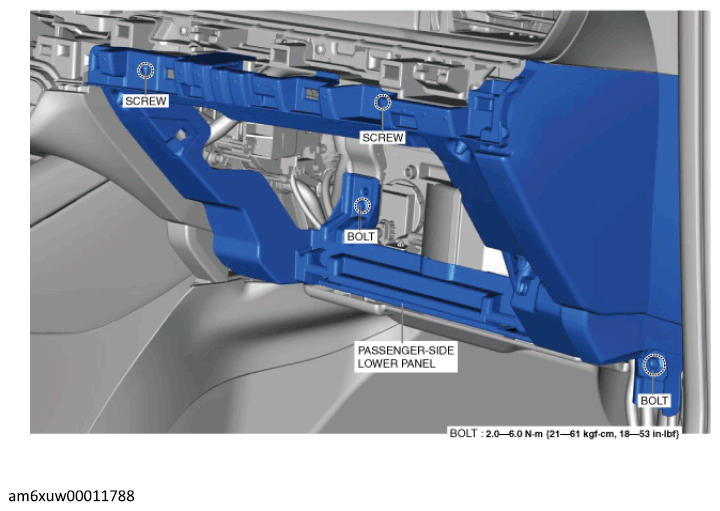

Fig 2: Passenger-Side Lower Panel, Screws And Bolts
Courtesy of MAZDA MOTORS CORP.
Install the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
Measure the gaps between the glove compartment and the passenger-side lower panel and verify that the measured value is within the standard value.
- If not within the standard value, move the passenger-side lower panel and adjust the installation position.

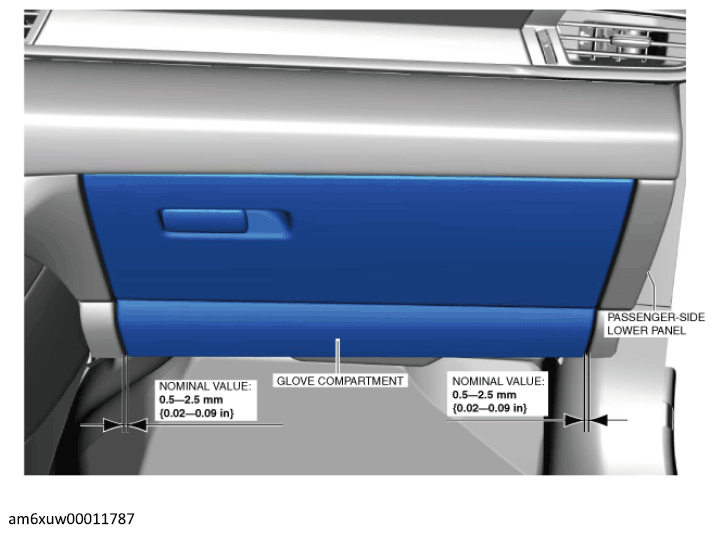

Fig 3: Measuring Gaps Between Glove Compartment And Passenger-Side Lower Panel
Courtesy of MAZDA MOTORS CORP.
Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
Tighten the bolts and screws completely.

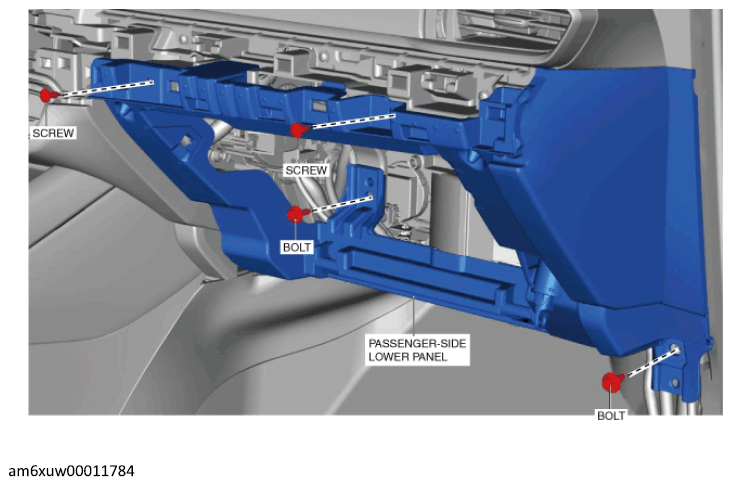

Fig 4: Passenger-Side Lower Panel, Bolts And Screws With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install the following parts:
1. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
2. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
3. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
4. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
5. Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
