Upper Panel Disassembly/Assembly
WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

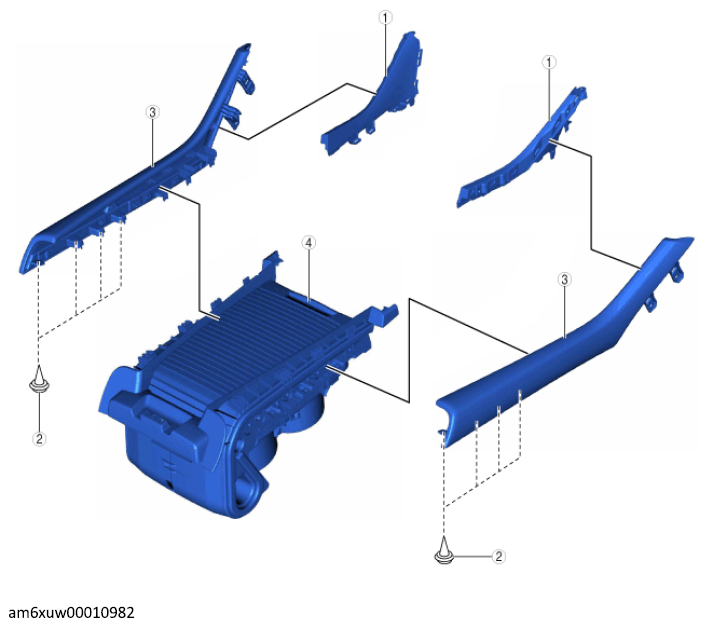

- Disassemble in the order indicated in the table.
Courtesy of MAZDA MOTORS CORP. COMPONENT DESCRIPTION
| 1 |
Side cover |
| 2 |
Strew |
| 3 |
Console side panel No. 2 |
| 4 |
Cup holder component |
- Assemble in the reverse order of disassembly.
