Windshield Wiper And Washer Switch Inspection

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
2. Wiper and washer switch (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION .)
Verify that the continuity between the windshield wiper and washer switch terminals is as indicated in the table.
- If the continuity is not as indicated in the table, replace the windshield wiper and washer switch. (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION .)

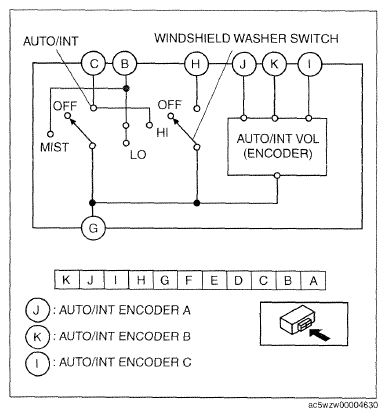

Fig 1: Checking Continuity Between Windshield Wiper And Washer Switch Terminals
Courtesy of MAZDA MOTORS CORP.

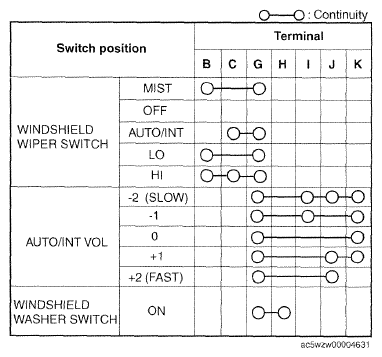

Fig 2: Windshield Wiper And Washer Switch Terminals Continuity Chart
Courtesy of MAZDA MOTORS CORP.
