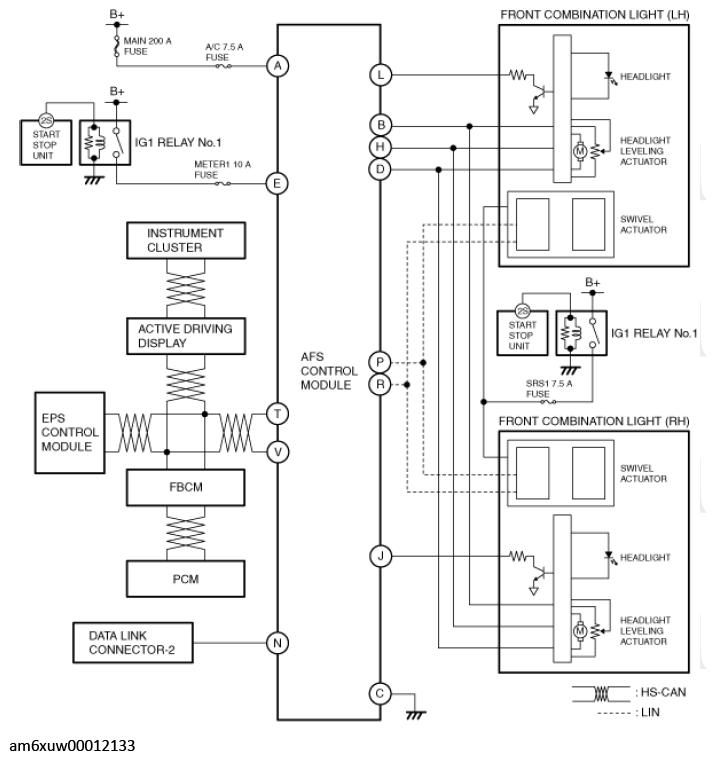

On-Board Diagnostic Wiring Diagram (Adaptive Front Lighting System (AFS) Control Module)

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
