Deflector Removal/Installation

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Fully open the glass panel.

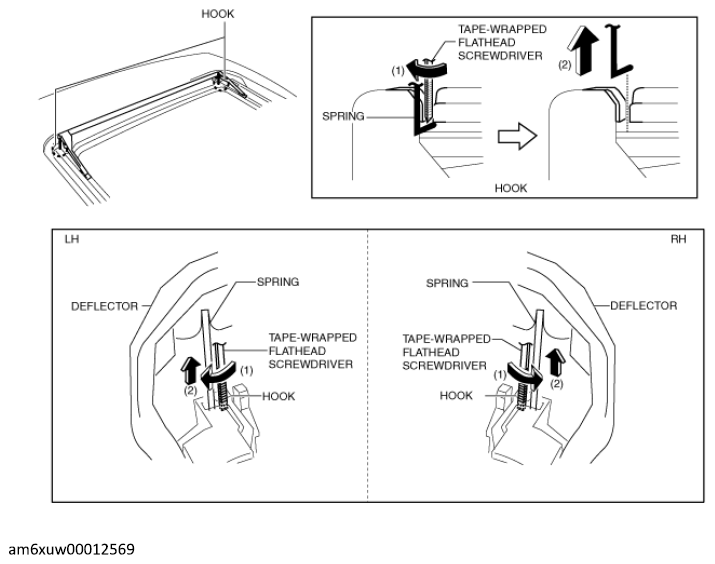

Rotate a tape-wrapped flathead screwdriver in the direction of the arrow (1) shown in the figure below and remove the spring in the direction of the arrow (2) shown in the figure below from hooks.
CAUTION:
- If the spring is removed forcefully, hook located at the spring installation area may be damaged. Carefully remove the spring so as not to damage hook.
Fig 1: Spring
Courtesy of MAZDA MOTORS CORP.

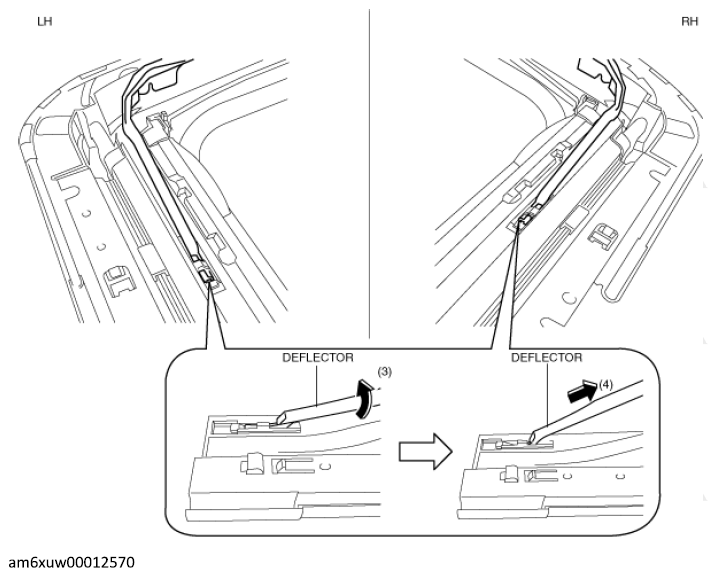

Remove the deflector in the direction of the arrow in the order of (3), (4) shown in the figure below.

Fig 2: Deflector
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
