Sunroof Unit Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the table.

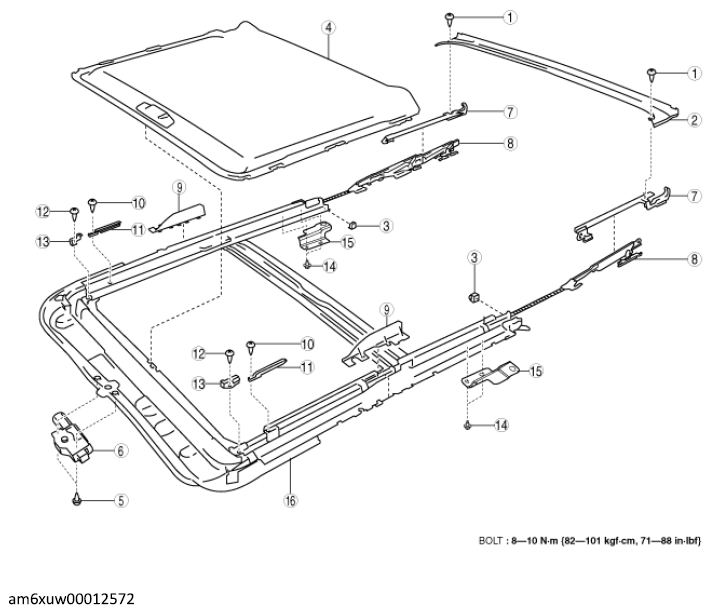

Fig 1: Exploded View Of Sunroof Unit

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Screw A
2	Drip rail
3	Rear stopper
4	Sunshade (See Sunshade Disassembly Note .)
5	Screw B
6	Sunroof motor
7	Front guide (See Front Guide Disassembly Note .)
8	Decoration link (See Decoration Link Assembly Note .)
9	Screen
10	Screw C
11	Set plate
12	Screw D
13	Front stopper
14	Bolt
15	Bracket
16	Sunroof frame

Assemble in the reverse order of disassembly.
