Power Door Lock System (Setting Method By Operation Of Door Lock Switch)

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

The following setting can be changed by operation of the door lock switch.

M-MDS Display	Function	Initial Setting	Setting Contents	Control Unit
Auto Door Lock Mode.	Auto door lock function can be changed.	Lock: Driving, Unlock: IGN Off.	OFF/Lock When Driving./Lock: Driving, Unlock: IGN Off./Lock When Shifting Out Of P./Lock: Shift From P, Unlock: In P./Lock: When Driving, Unlock: In Park.	Rear body control module (RBCM)

Change the setting for the auto door lock referring to the following procedure:
NOTE:
- If any of the following conditions is met during procedure, the setting change for the auto door lock is stopped.
  - Lock side of the door lock switch is pressed while in the personalization mode.
  - Unlock side of the door lock switch is pressed 7 times while in the personalization mode. (ATX)
  - Unlock side of the door lock switch is pressed 4 times while in the personalization mode. (MTX)

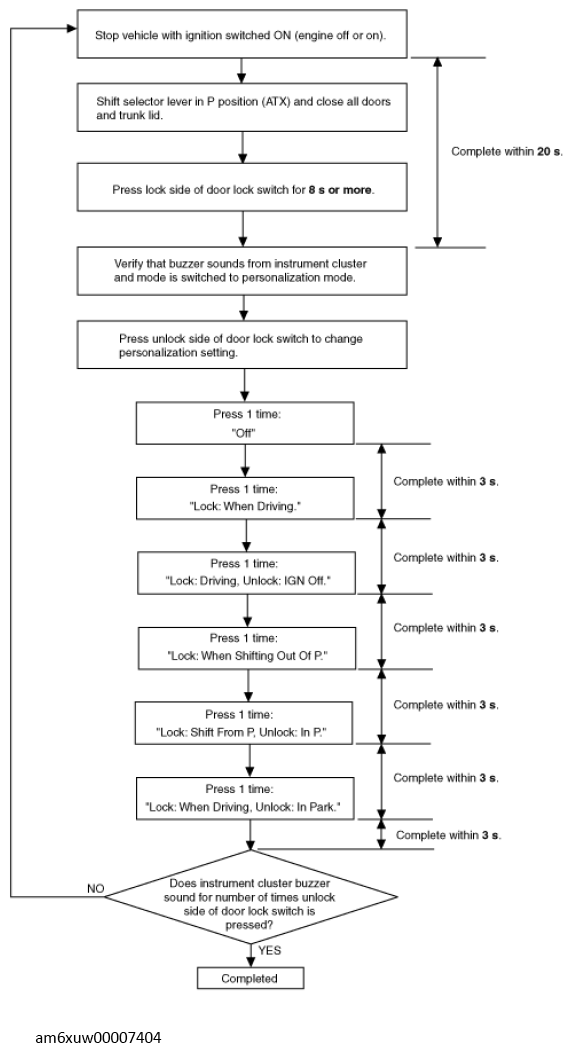

Fig 1: Auto Door Lock Setting Change Procedure Flowchart
Courtesy of MAZDA MOTORS CORP.
