Home › Mazda › 2021 › 6 Signature › Repair and Diagnosis › External Pages › Different variant/trim › Section 1 (Intake Air System (VIN M)) › Intake-Air System Removal/Installation › Air Hose Installation Note

Air Hose Installation Note

WARNING: This page is about a different variant/trim than selected.
  1. Install the air hose as shown in the figure.

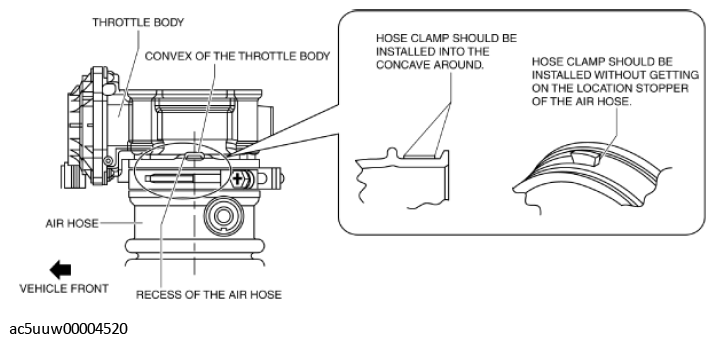

    Throttle body side

    G11429623Courtesy of MAZDA MOTORS CORP.

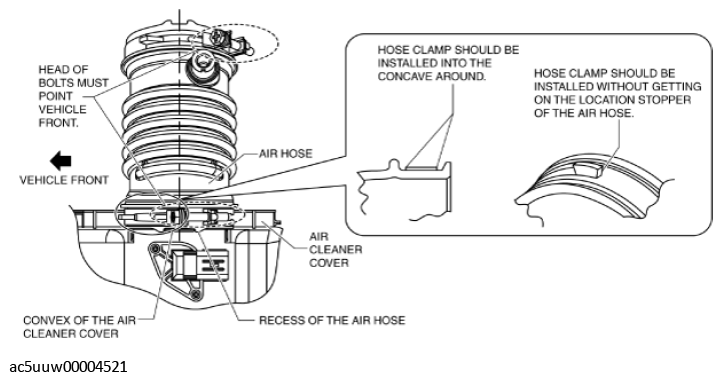

    Air cleaner side

G11429624Courtesy of MAZDA MOTORS CORP.
