Service Cautions: Reassembly

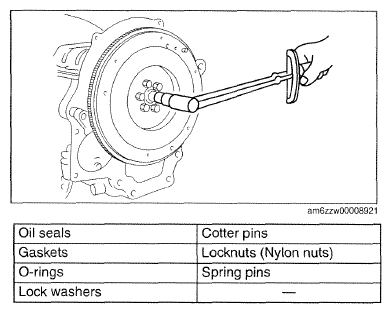

• Standard values, such as torques and certain adjustments, must be strictly observed in the reassembly of all parts.

Courtesy of MAZDA MOTORS CORP.

• If removed, these parts should be replaced with new ones:

PART DESCRIPTION

Oil seals	Cotter pins
Gaskets	Locknuts (Nylon nuts)
O-rings	Spring pins
Lock washers	-

• Depending on location:

• Sealant and gaskets, or both, should be applied to specified locations. When sealant is applied, parts should be installed before sealant hardens to prevent leakage.
• Oil should be applied to the moving components of parts.
• Specified oil or grease should be applied at the prescribed locations (such as oil seals) before reassembly.

Courtesy of MAZDA MOTORS CORP.
