Driver's side

  1. Remove the driver-side side wall. (See SIDE WALL REMOVAL/INSTALLATION .)

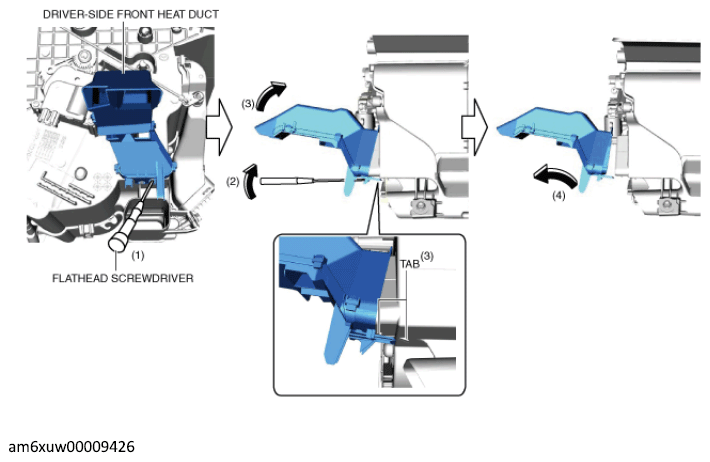

  2. Insert a flathead screwdriver in the position shown in the figure (1), lift it up in the direction of the arrow (2).
    G12233484Courtesy of MAZDA MOTORS CORP.
  3. Detach the tab while lifting up the driver-side front heat duct in the direction of the arrow (3).
  4. Remove the driver-side front heat duct (4).
  5. Install in the reverse order of removal.
