Front Door Trim Disassembly/Assembly: Driver-side

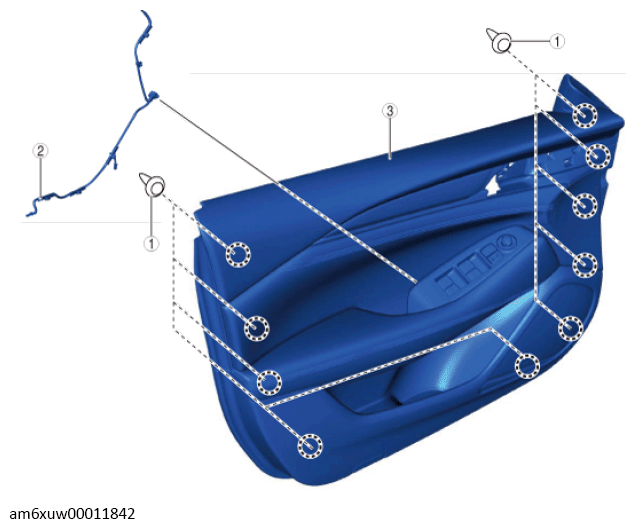

Disassemble in the order shown in the figure.

G13725168

Courtesy of MAZDA MOTORS CORP.

PARTS DESCRIPTION

1	Fastener
2	Short cord
3	Front door trim

Assemble in the reverse order of disassembly.
NOTE:
- When replacing the front door trim, remove the following parts:
  1. Power window main switch (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)
  2. Door lock switch (See DOOR LOCK SWITCH REMOVAL/INSTALLATION .)
  3. Power window main switch cover (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)
  4. Courtesy light (See COURTESY LIGHT REMOVAL/INSTALLATION .)
  5. Pocket light (with pocket light) (See POCKET LIGHT REMOVAL/INSTALLATION .)
