Insulator Installation Note

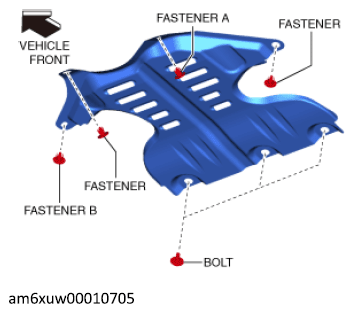

Install fastener A shown in the figure.

Courtesy of MAZDA MOTORS CORP.
Install fastener B shown in the figure.
Install the remaining fasteners.
Tighten the bolts shown in the figure to the specified torque.
Tightening torque

7-9 N.m {72-91 kgf.cm, 62-79 in.lbf}
