UP switch, DOWN switch, INFO button

Measure the resistance between steering switch terminals 3D and 3L under the following conditions.

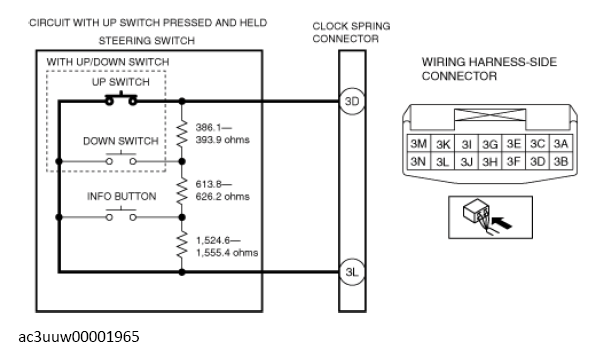

- Resistance with UP switch pressed and held
- 0 ohms
Courtesy of MAZDA MOTORS CORP.

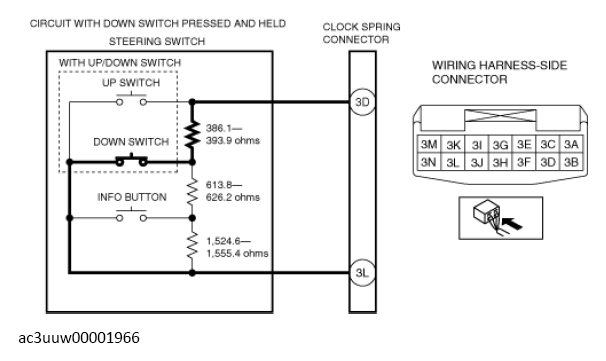

- Resistance with DOWN switch pressed and held
- 386.1-393.9 ohms
Courtesy of MAZDA MOTORS CORP.

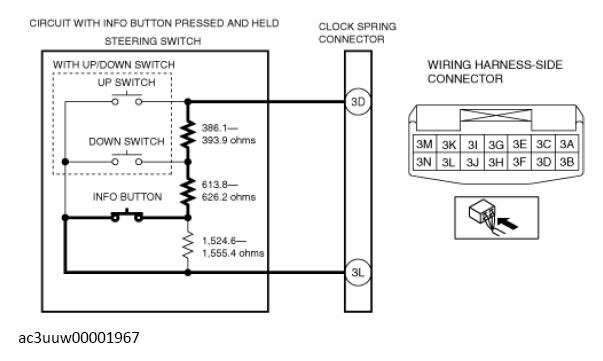

- Resistance with INFO switch pressed and held
- 999.9-1, 020.1 ohms
Courtesy of MAZDA MOTORS CORP.

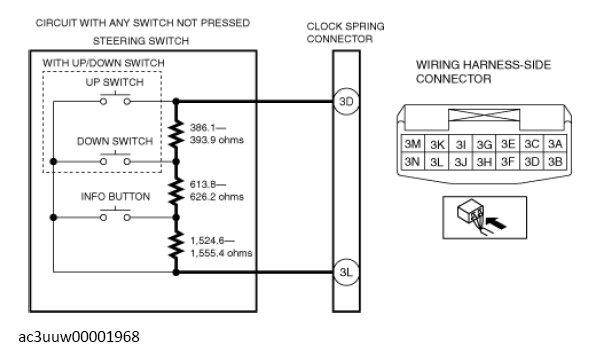

- Resistance with any switch not pressed
- 2, 524.5-2, 575.5 ohms
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the steering switch. (See STEERING SWITCH REMOVAL/INSTALLATION .)
